Revit Server does not provide these rights
In RS itself there is no transparent way to assign access by user, group, project, model section and action. RSG adds this control layer.
Access rights · Audit · Revit Server protection
Revit Server Guard©
Revit Server Guard turns standard Revit Server into a secure and transparent environment for team collaboration.
RSG actively manages data exchange and prevents unauthorized actions before they affect the project.
4 components.NET 8 · React · TCP proxy · LicenseTool
HTTPS-only APIECDSA P-256 · P1363 signature
RS 2021–2027multi-version support out of the box
Why RSG
The issue is not people. The issue is missing rights in Revit Server.
RSG enforces project rules technically instead of relying only on instructions and user attention.
Manual regulations do not scale
On complex projects, instructions and training alone are not enough: too many companies, roles and temporary participants work in one environment.
RSG blocks the violation before it happens
The user sees and performs only what is allowed for their role. Accidental and intentional actions outside responsibility are stopped at the proxy layer.
Control becomes transparent
BIM administrators see who requested what, which rule allowed or blocked it, and where rights need to be adjusted.
How it works
Configure the rules once — RSG enforces them every time.
Install RSG next to Revit Server, connect users and groups, then define projects, sections and allowed actions.
01
Configure rights
Set who can see, open, edit, publish or administer each project and model section.
02
Policy Engine checks permissions
Rules are built from users, groups, roles, projects, sections and operation types: browse, open, write, publish and administration.
03
The request goes through the gateway
The Revit client connects to the familiar RS address, while the RSG TCP proxy accepts the connection and forwards it only after the check.
04
Backups — project backup grid
Centralized backup scheduling for Revit Server projects with storage path, schedule, last backup date, and success/error status.
05
Audit log — event stream and export
A full history of changes: who did what, where, and when, with filters by project, user, action type, and PDF/XLSX export.
RSG interface
The real RSG admin panel: screens, scenarios and daily work.
Rights, sections, gateways, backups and analytics are collected in one administrative interface.

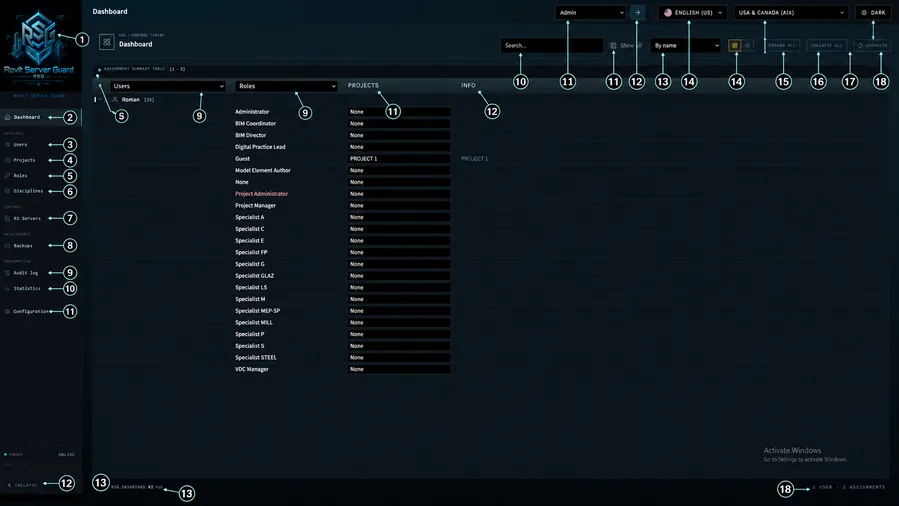

Overview — access assignment summary table
The administrator’s start screen. It shows who has which role in each project and section, with search, grouping, bulk actions, and refresh.

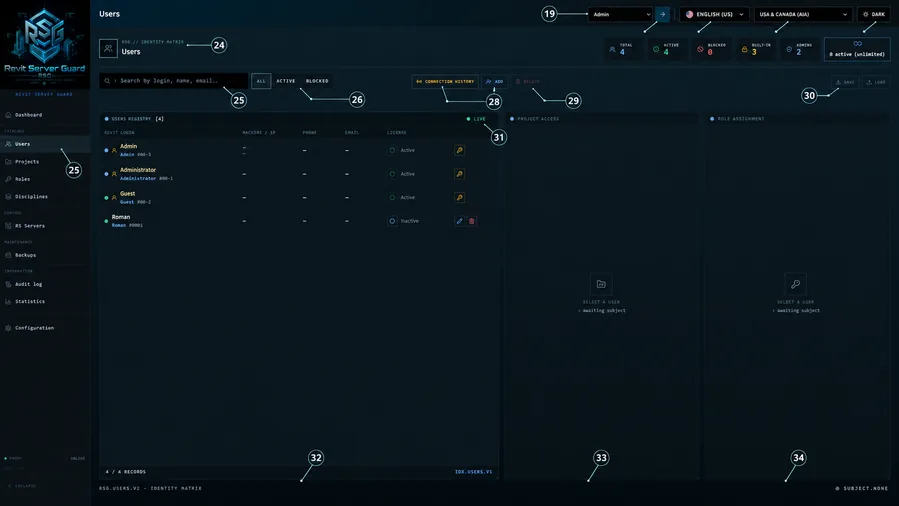

Users — identity register and assignments
A controlled list of users, their status, projects, roles, and actions for creating, editing, importing, and exporting accounts.

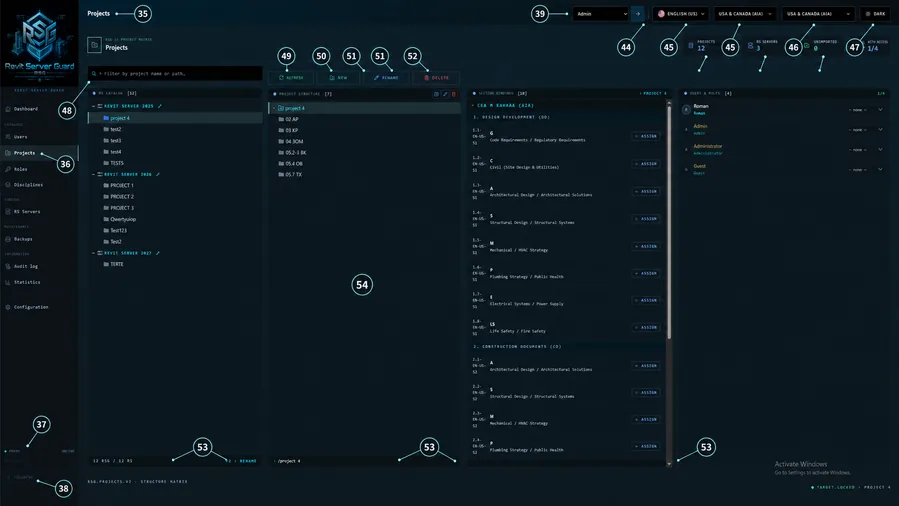

Projects — Revit Server project catalogue
The link between real Revit Server projects and RSG administration: server path, country, folder tree, section bindings, and user assignments.

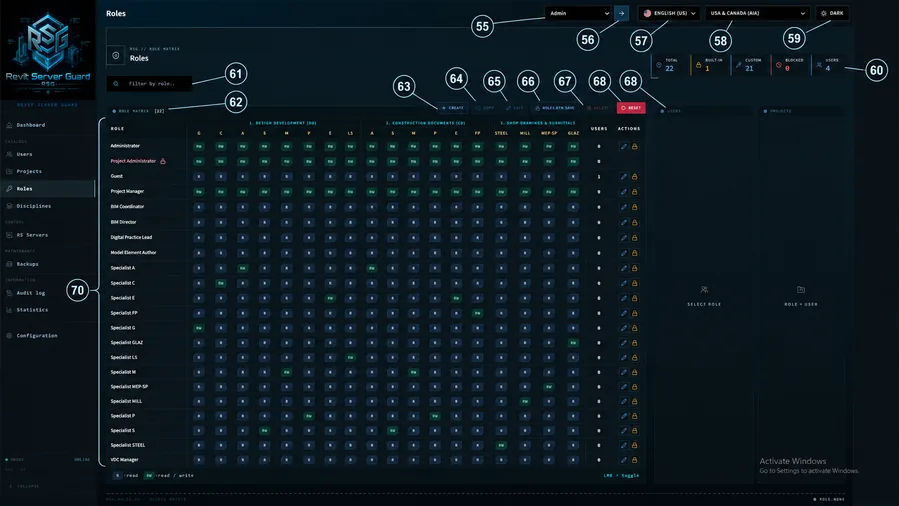

Roles — permission matrix by section
The main place for configuring authorization: which role can write to which section or discipline.

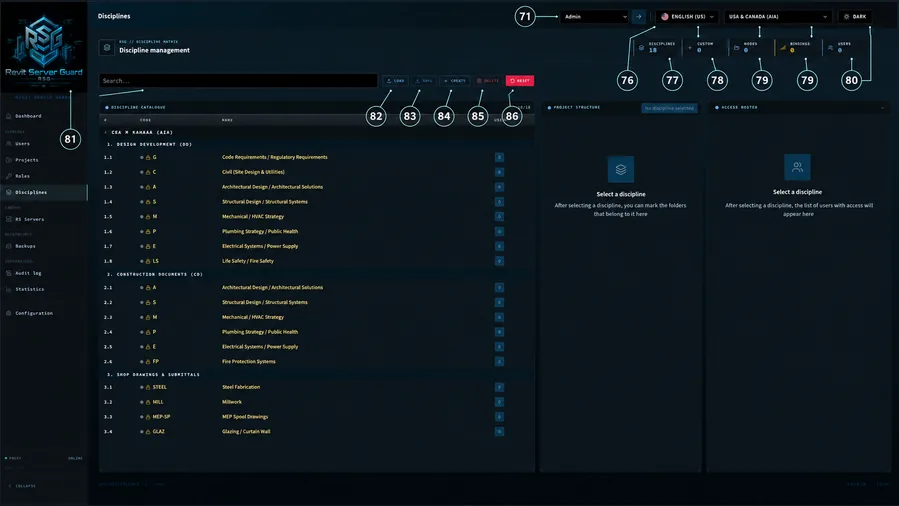

Sections — discipline catalogue and bindings
The discipline directory such as AR, KR, MEP, and the bindings between sections and real Revit Server project folders.

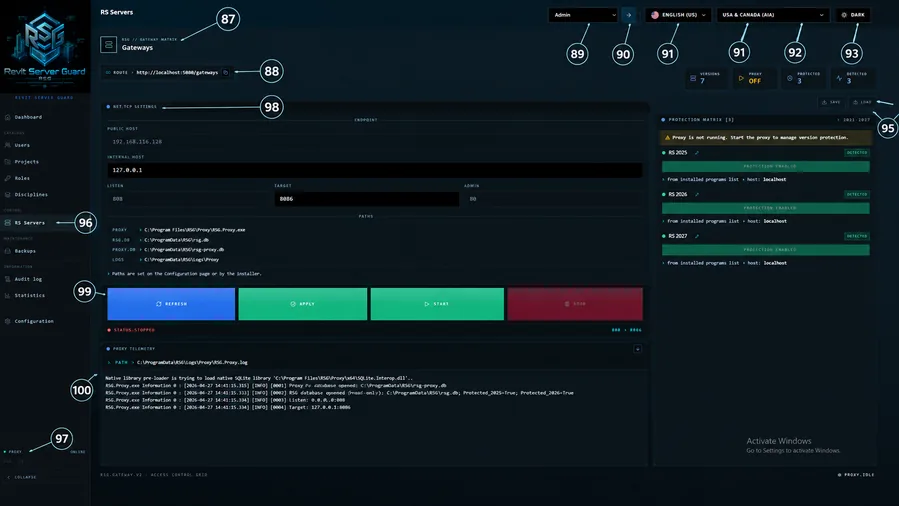

RS gateways — proxy and protection management
The RSG protection layer for network access to Revit Server: hosts, proxy paths, protection status, and service start/stop.

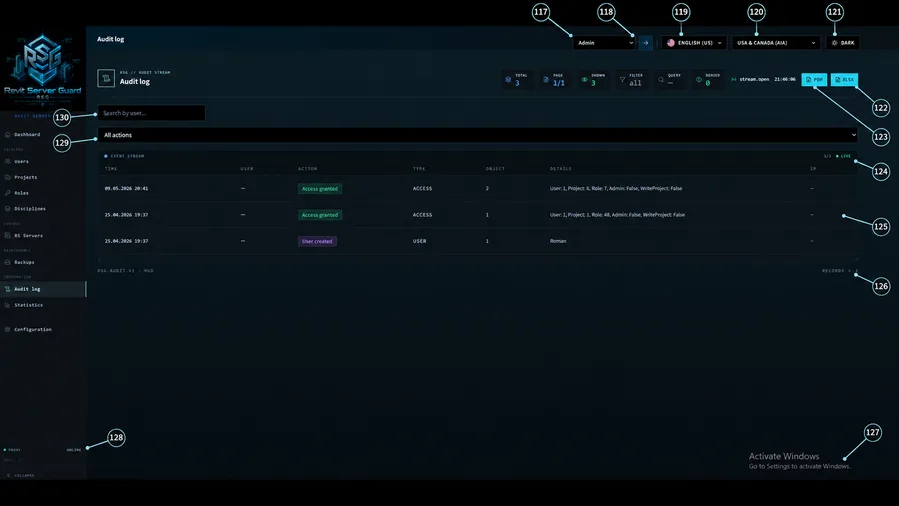

Audit log — event stream and export
A full history of changes: who did what, where, and when, with filters by project, user, action type, and PDF/XLSX export.

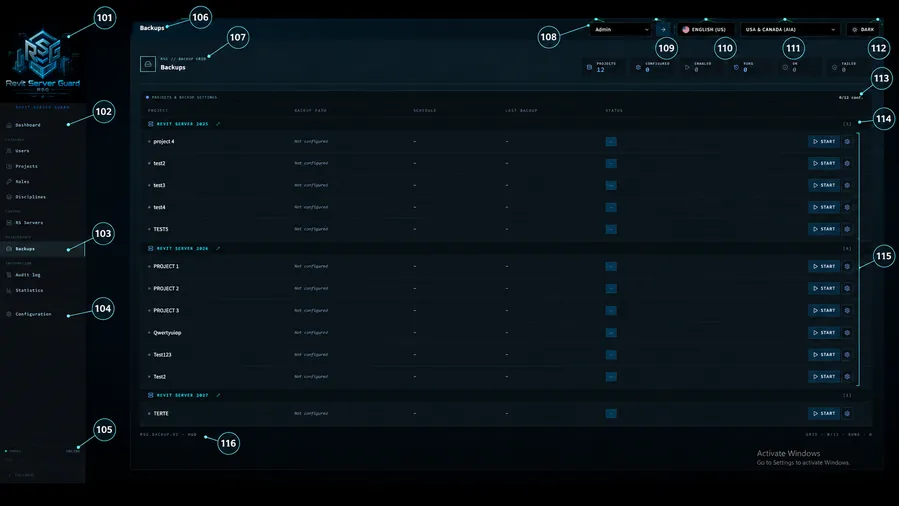

Backups — project backup grid
Centralized backup scheduling for Revit Server projects with storage path, schedule, last backup date, and success/error status.

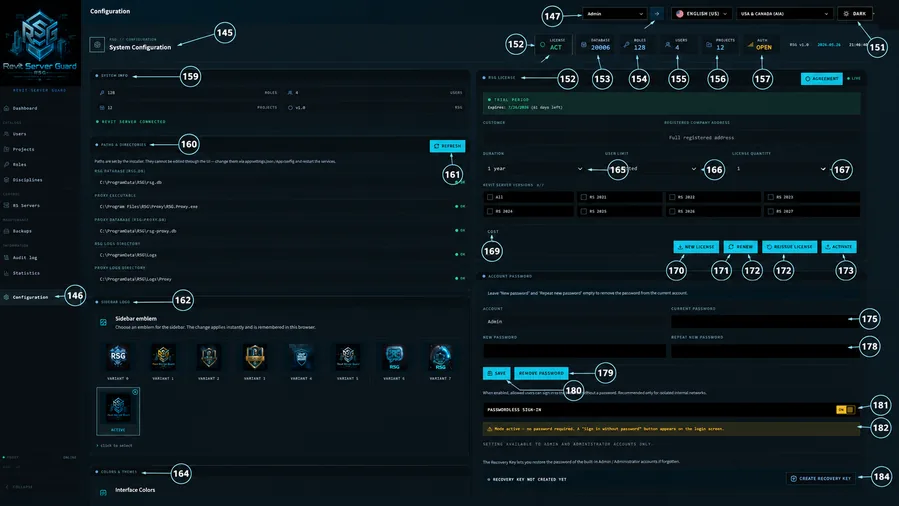

Configuration — system settings, license, and appearance
The configuration screen for license, branding, database, ports, API address, server path, theme, languages, logo, and administrator password.

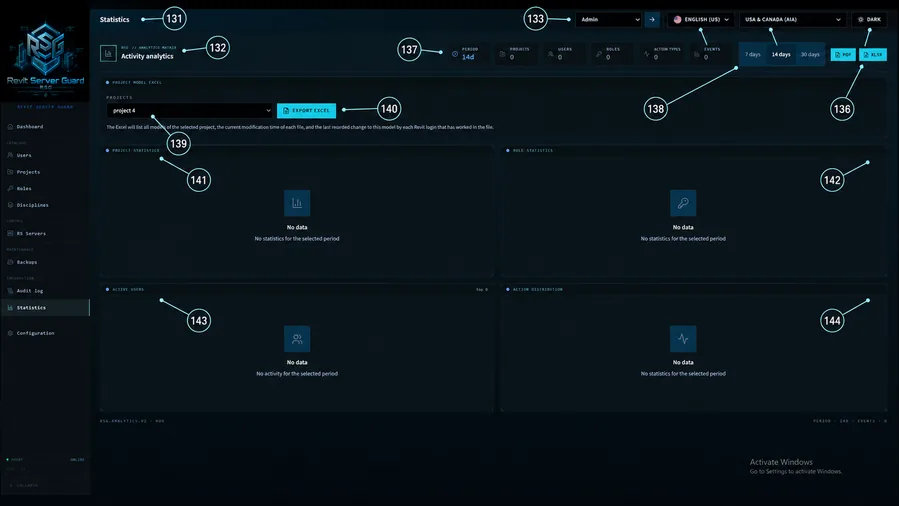

Statistics — activity analytics and reports
Charts and summaries for activity: projects, users, changes, exports, and separate project model activity export.
Who it is for
Manual regulations do not scale
Complex projects include many companies, roles and temporary participants in one environment.
Control becomes transparent
BIM administrators see who requested what and which rule allowed or blocked it.
RS gateways
The protection layer manages hosts, proxy paths and service status.
Manual regulations do not scale
Large project teams need rules that are enforced automatically.
RSG pricing
Price and calculator first — details after.
Build the configuration for your infrastructure: term, users, Revit Server versions and server count.
Y1 · UP_TO_5 · 1V
Starter
$2 700/ year
- 1 year
- Up to 5 users
- 1 RS version of choice
- 1 server (1 fingerprint)
- Email support and public forum
Popular
Y1 · UP_TO_50
BIM team
$12 000/ year
- 1 year
- Up to 50 users
- 2 Revit Server versions
- 1 production server
- Priority support · 2 business day SLA
- Access to private forum sections
PERM · UP_TO_50 · 4V
Perpetual
$54 000
- Perpetual license
- Up to 50 users
- 4 RS versions of choice
- 1 server
- 12 months of support included
- Support renewal as a separate line item
License calculator
Calculate your configuration
Choose the licence type, users, term, Revit Server versions and server count.
Estimated total
$0
∞
0/7
Ready to try?
Install RSG next to Revit Server today.
Run RSG on a test project and see the access controls Revit Server does not provide by itself.
