WHAT'S NEW

What's new in RS Param Manager

Features and updates

Revit 2021–2027 · 1.7.78 · 2026-10-04

Work with parameters in bulk—not one by one

Add, delete, map, transfer, and change parameters as a set. RS Param Manager brings family and project parameter workflows into readable tables and can open instead of the standard Revit dialogs.

The essentials: one action for multiple parameters

Add. Bring in shared parameters from one or more shared parameter files (SPFs), plus custom family parameters in the Family Editor. Load lists from Excel, CSV, TSV, TXT, or the clipboard; assign a group and type/instance setting to a whole set.

Delete. Remove several selected parameters with one command and confirmation. Revit built-in parameters are protected; document dependencies and restrictions may prevent deletion.

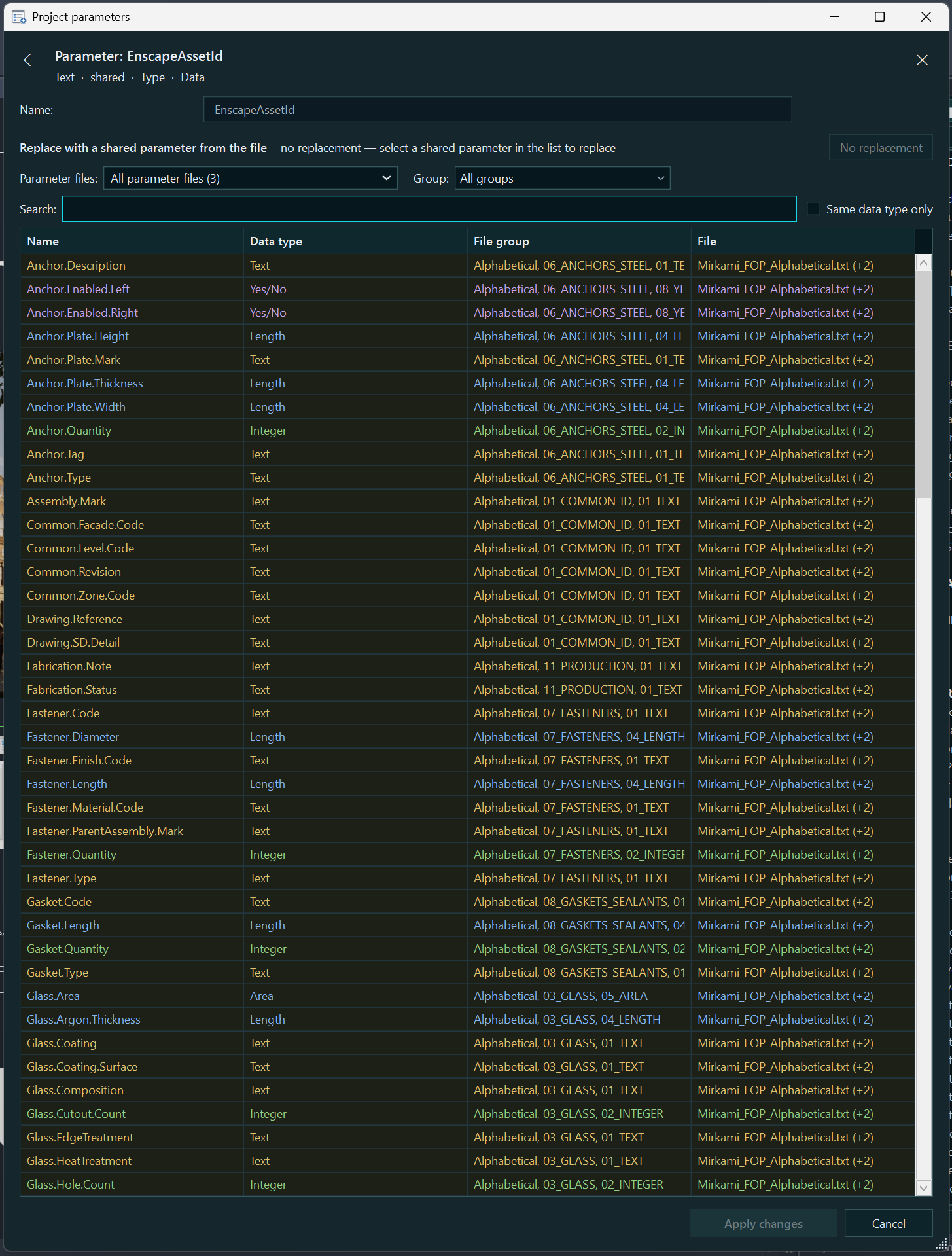

Map. Prepare replacements of family parameters or existing shared parameters with shared definitions from an SPF. Match compatible definitions by name and review before applying. Shared parameter names can also be updated from an SPF by the same GUID.

Transfer. Move selected parameters between groups, reorder them in a family, exchange sets through files, and align project parameters with a reference. A separate command transfers values between parameters.

Change type and properties. Switch multiple parameters between type and instance, assign groups and categories, and edit family parameter properties. Convert family parameters to shared parameters or back where Revit permits.

See the properties you need at a glance

In a family: name, origin—built-in, shared, or family parameter—data type, type/instance, value, formula, and lock. Group headings show the group; editing dialogs and tooltips provide additional properties.

In projects and SPFs: parameter kind, data type, group, categories, and applicable binding properties. Global parameters show values, formulas, and reporting status; the SPF editor shows GUID, description, and definition flags. Project shared-parameter descriptions and user-modifiable status come from connected SPFs, matched by GUID.

Type/instance, parameter origin, and data type are different properties. An existing data type, such as Length or Text, cannot be changed arbitrarily: replacements require a matching data type.

Working with families and projects

Families: add and edit a complete set

Bulk add parameters brings shared definitions from SPFs and custom family parameters into one list. Set properties, initial values, and formulas before adding; existing parameters are identified in advance.

Bulk edit parameters opens a property table. Select several parameters; with zero or one selected, it opens all non-built-in parameters. Assign group, type/instance, reporting status, and tooltip text to multiple rows. Matching by name selects only a unique SPF candidate of the same data type; mappings can be set manually for each row and the prepared set applied together.

Projects: parameters and bindings in one table

Separate collapsible sections show shared parameters, unbound shared parameters, project parameters, and global parameters. Change group, categories, type/instance, and variation between group instances for multiple applicable rows. Bind several unbound shared parameters to categories while retaining their GUIDs. Edit global parameter values and formulas in the same table.

Values when changing a binding: type to instance copies the type value to its instances; instance to type transfers a value only when every instance of that type agrees. Conflicts are reported, and the affected type values remain empty.

Transfer, exchange, and review

Families—.params.json. Export stores parameters, properties, formulas, and values for all family types. Import previews Before/After and applies only checked changes: additions, explicit deletions, replacements, names, groups, type/instance, formulas, values, and order. Omitting a parameter from the file does not delete it. Import checks regeneration of all family types afterward.

Projects—compare with a reference. Use an open project, a link, .rvt / .rte, or .rsparams.json. Shared parameters match by GUID; project parameters by name. Choose missing shared parameters to add, bindings to correct, replacements, and extras to remove. Export to Excel, CSV, or a reference file; a data-type mismatch is not corrected automatically.

Value transfer and usage. Value Transfer works with one source/target parameter pair, processing elements or types in the target categories in bulk: fill empty values only or overwrite. Usage helps review populated values, schedules, filters, views, and families; it does not prove that every possible dependency is absent.

SPFs: more than choosing a file

The SPF editor switches between connected files, displays parameter properties, searches, creates and edits definitions and groups, and moves or deletes multiple selected parameters. Existing GUIDs and data types stay unchanged. A backup is created before edits; changing an SPF does not by itself update definitions in existing families.

Familiar Revit commands and recent improvements

Open the solution instead of standard dialogs

In Settings → Revit Commands, enable the commands you need. Each has its own switch; replacement is off by default. Once enabled, the familiar Revit button and its assigned keyboard shortcut open the solution:

Family Types opens the extended family parameter table.

Project Parameters opens the project parameter table.

Shared Parameters opens the editor for Revit's active SPF.

Global Parameters opens the project table showing global parameters only.

From a window opened this way, Standard Revit dialog… saves changes and switches to the native dialog. The override can be disabled. It does not replace every nested Revit dialog; overriding Global Parameters is unavailable in Revit 2021. If a command cannot be overridden, another add-in owns it, or the solution window fails to open, the native command is retained or restored.

Improvements through version 1.7.78

Formulas and import. The multiline editor supports indentation and // comments while sending a single-line formula to Revit. Import handles formulas and values together. When a formula fails, the solution supplements Revit's message with detected causes: unknown names, self-references and cycles, type-to-instance references, and incompatible restrictions; it also lists participating parameter data types.

No repeated input-error loop. Correct the text, cancel the input, or force the change where available. The last option may remove formulas, dimension labels or locks, and obstructing dimensions or lines. Review the cause before using it and the change report afterward.

Navigation and relationships. Tab / Shift+Tab move down/up within a column; arrow keys help move between cells. Scroll while editing. Show related highlights direct formula dependents. Show unassigned filters length, angle, and integer parameters not assigned to dimensions or arrays; a formula alone does not count as an assignment.

Appearance and control over changes

Fast tables, per-section project columns, search, sorting, and saved column widths and group states support large lists. In Settings → Colours, distinguish origin through row backgrounds and data types through text colour; themes and bold text are configurable. General settings also provide licensing and updates.

Save a document copy before bulk editing. Review previews and reports: one failed operation does not always roll back the entire batch. Cancel in the main window reverts changes not yet committed; Apply commits the current stage. SPF edits are written separately: on cancellation, the editor offers to restore the saved file state.

DESCRIPTION

RS-SYSTEMS

RS Param Manager

Professional parameter management for Autodesk Revit 2021–2027

Professional parameter management for Autodesk Revit 2021–2027

RS Param Manager brings the parameter tasks that most often slow down design work into one controlled workflow: project parameters, shared parameters, family parameters, standards comparison, value transfer and global parameters. It is designed for architects, engineers, BIM coordinators and family authors who need to make many parameter changes quickly without losing consistency between models and families.

What matters most in day-to-day design work

• See and edit project parameters in one searchable table instead of switching between Revit dialogs.

• Add or standardise dozens of parameters at once from shared-parameter files, spreadsheets or the clipboard.

• Keep family parameters, formulae, values and shared definitions aligned with office standards.

• Compare a model with a reference and fix missing or inconsistent parameter bindings selectively.

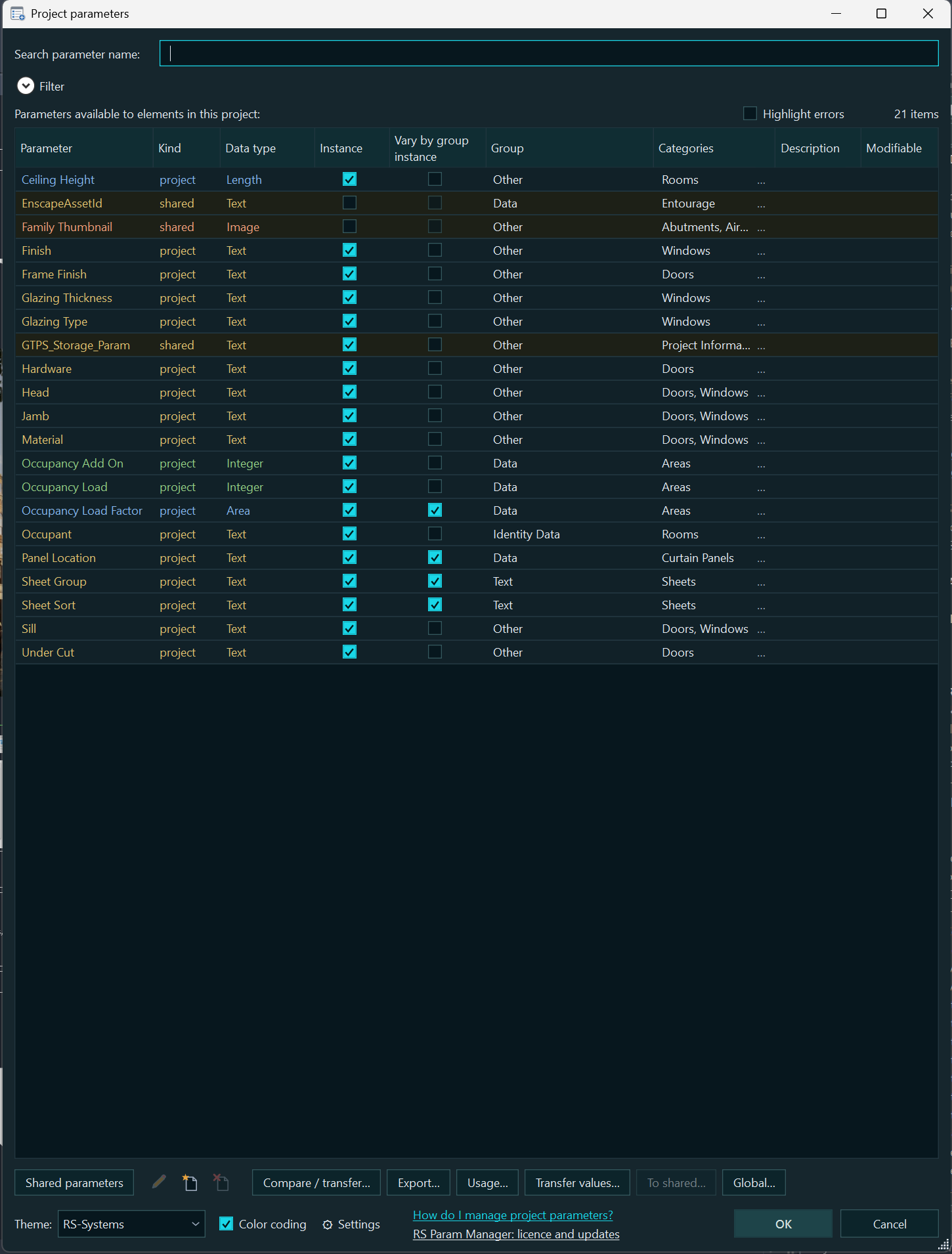

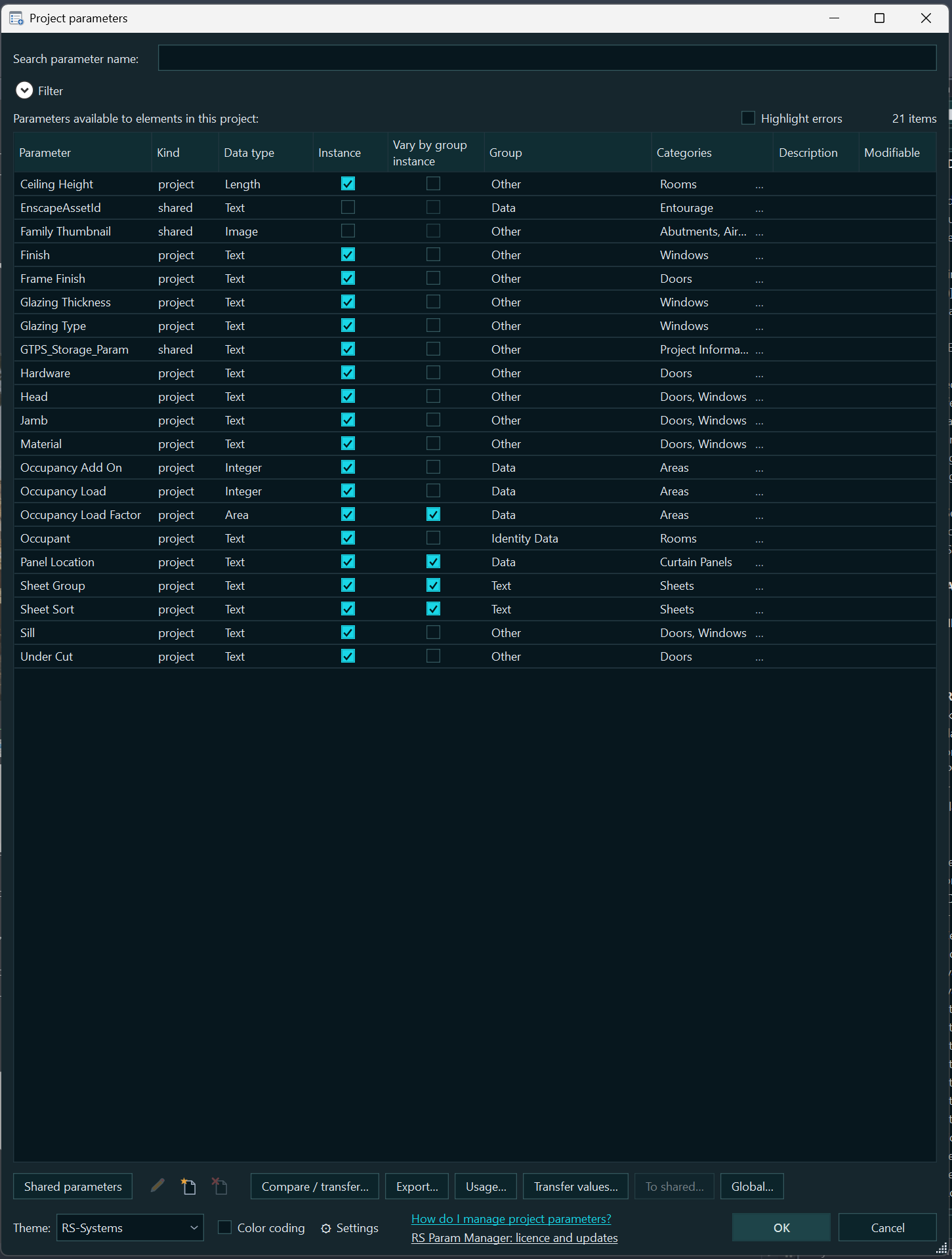

1. Project parameters in one working table

The main project window shows parameter name, kind (project/shared), data type, instance/type binding, “vary by group instance”, group, categories, description and modifiability. Search and category filters narrow the list, while multi-level sorting helps audit large projects. You can change groups and bindings for one or many selected parameters, edit categories, and highlight duplicate-name problems. Switching instance ↔ type uses value-preservation rules instead of simply discarding existing data.

1. Project parameters in one working table

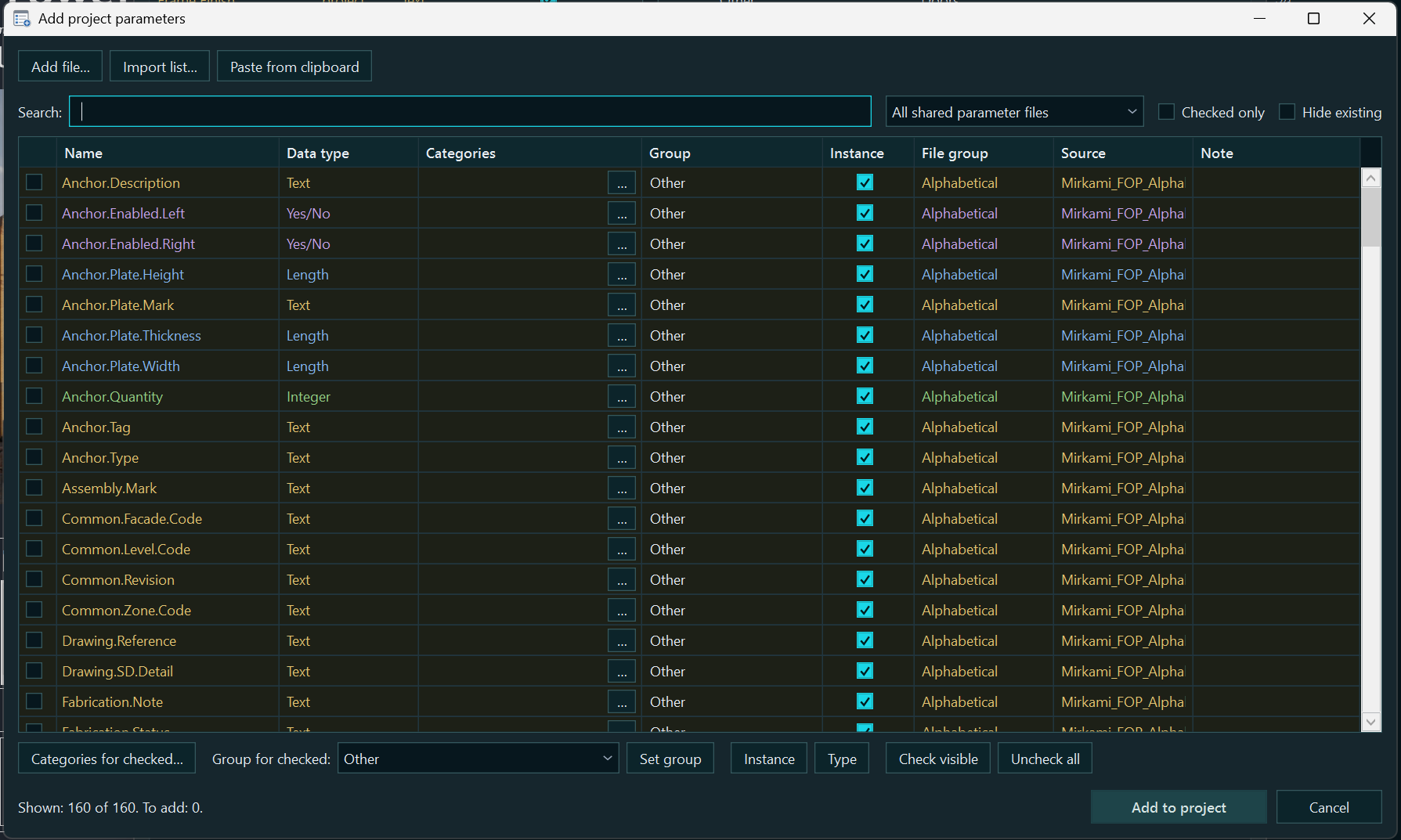

2. Batch addition and standardisation

Parameters can be added in batches from all connected shared-parameter files or imported from XLSX, CSV, TSV, TXT and clipboard data copied from Excel. The import recognises common Russian and English column headers, maps names to shared definitions, previews the action for every row, and lets you set group, instance/type, categories, initial values and formulae before execution. Existing parameters can be skipped or updated. In families, initial values can be written to the current type or to all family types.

2. Batch addition and standardisation

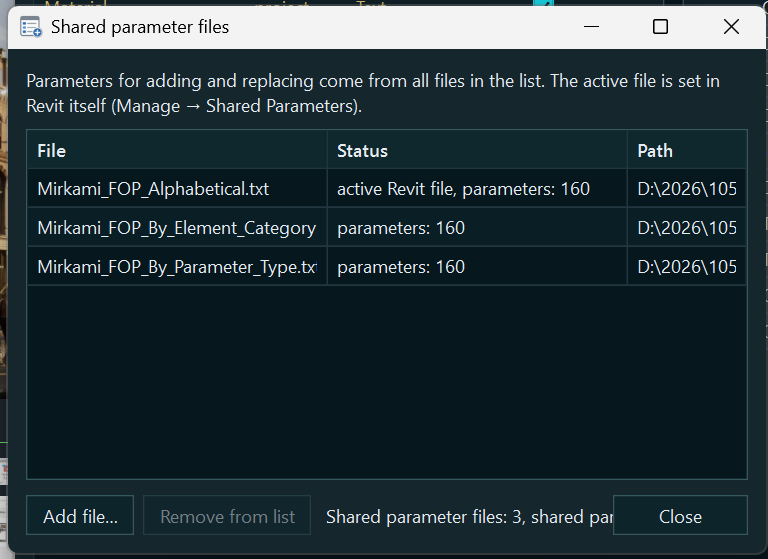

3. Shared parameter files as a working library

RS Param Manager uses the active Revit shared-parameter file together with any number of additional files connected inside the tool. You can reload files and search definitions by name, group, data type or GUID. When the same name exists in several files, the exact source can be selected. Existing project or family parameters can be matched and replaced with shared definitions. A project parameter can also be converted to a shared parameter in an existing or new file while retaining categories, group, instance/type, vary-between-groups setting and values where Revit permits.

3. Shared parameter files as a working library

4. Family authoring without repetitive dialog work

In the Family Editor, RS Param Manager provides a familiar Family Types-style workspace. You can manage types; edit values, formulae and lock states; reorganise parameter groups and order; add, rename or remove parameters; and replace family parameters with shared definitions. Dedicated pickers are available for materials, images, keynotes and nested-family values. The formula editor supports multi-line formatting and comments while writing a valid one-line Revit formula. Family parameter sets can be exported and imported with values/formulae and remapped to shared parameters.

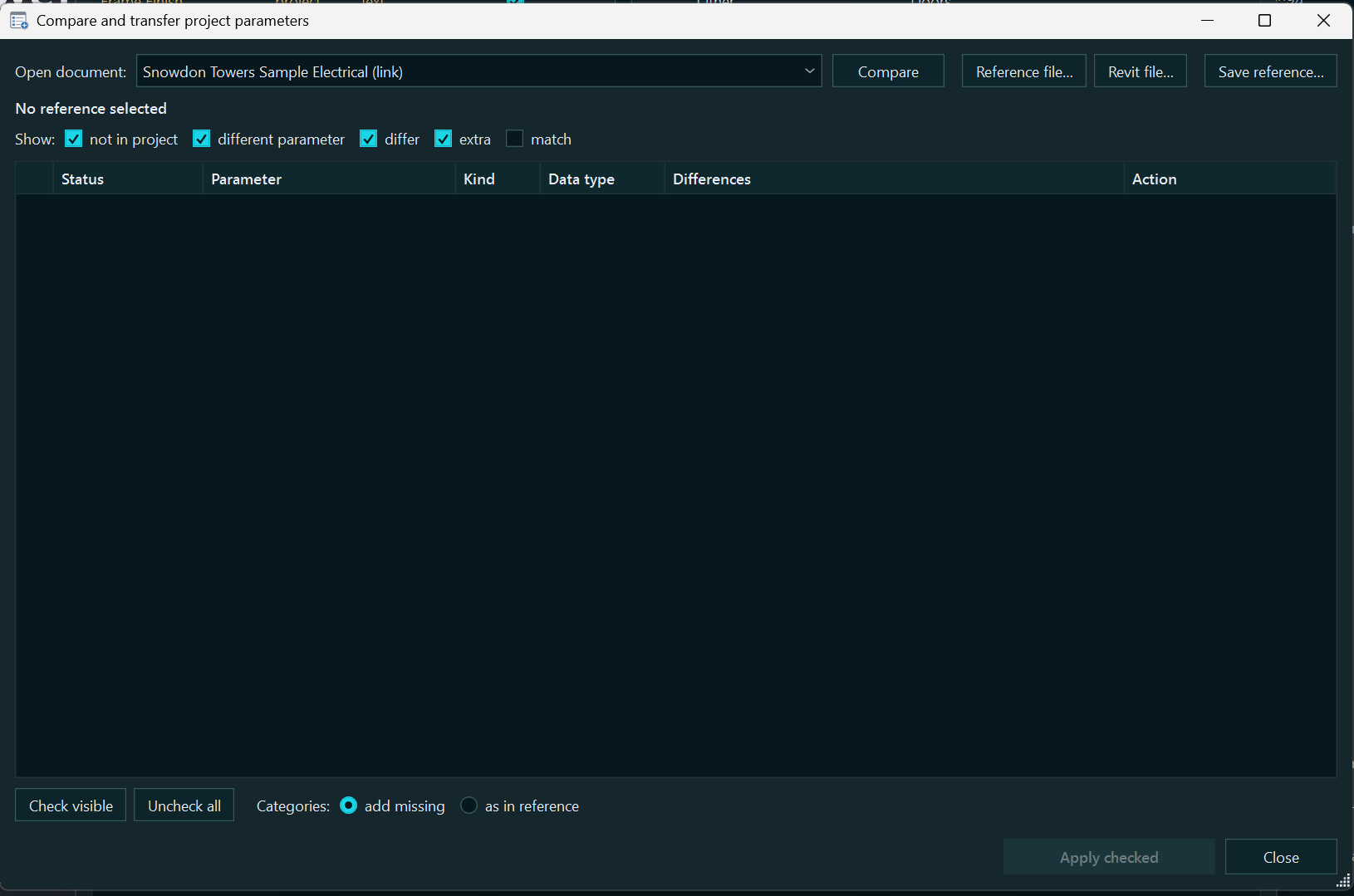

5. Compare a model with a parameter standard

Compare / transfer checks the open project against another open model or link, a saved .rsparams.json reference, or an RVT/RTE file opened read-only in the background. Shared parameters are matched by GUID and project parameters by name. Results are classified as missing, different, conflicting, extra or matching. Selected corrections can replace conflicting shared parameters, add missing shared parameters, repair group/category bindings and optionally remove extras. The current project can also be saved as a reusable reference for later audits.

5. Compare a model with a parameter standard

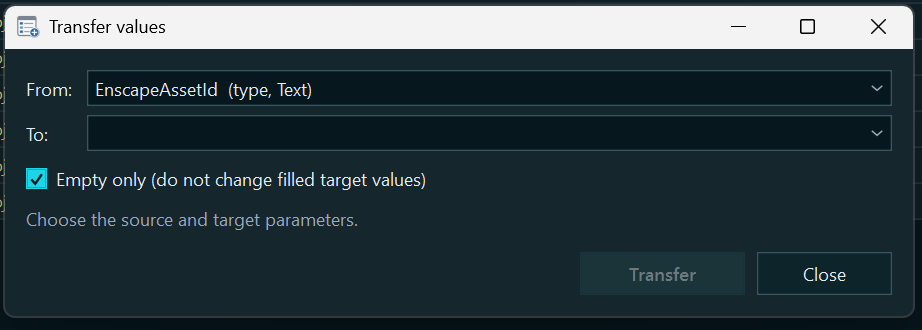

6. Audit usage and transfer values

Usage analysis shows whether selected parameters are actually used: how many elements or types contain a value, whether a parameter appears in schedules, view filters, views or view templates, and which parameters appear unused. Unused items can be selected back in the main list for clean-up. The value-transfer tool copies data from one parameter to another across the target categories, handles instance/type combinations, can fill only empty targets, and writes a clear result to the operation log.

6. Audit usage and transfer values

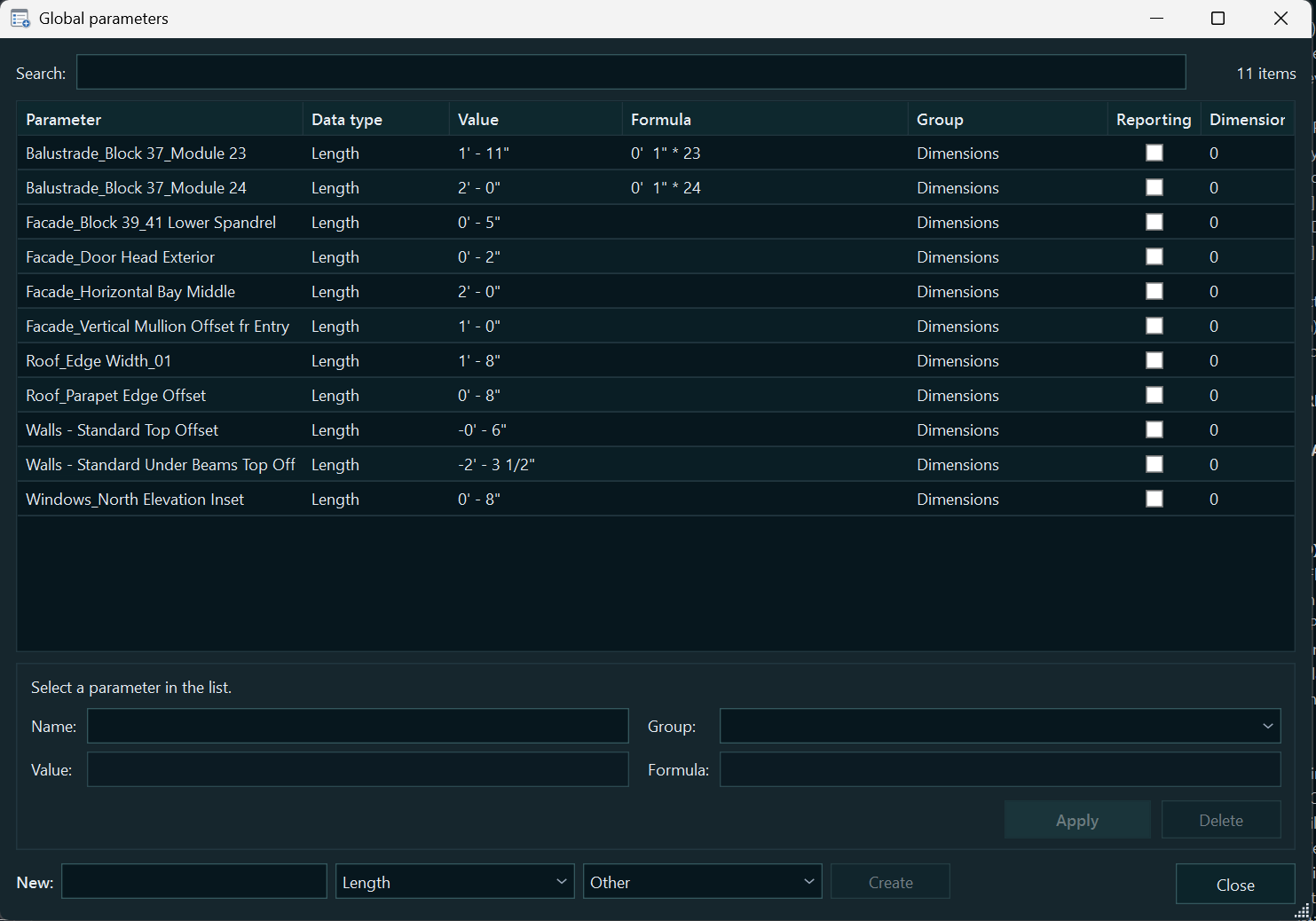

7. Global parameters in the same maintenance workflow

A dedicated window lists global parameters with data type, current value, formula, group, reporting state and the number of associated dimensions. You can search the list, create new global parameters, edit name, group, value or formula, and delete parameters with a warning when dimensions are associated. This keeps project-wide driving values and formulae close to the rest of the parameter maintenance workflow instead of treating them as a separate task.

7. Global parameters in the same maintenance workflow

8. Details that make repeated work faster and safer

Configurable colour coding distinguishes parameter kind and data type and can be switched off when a neutral table is preferred. Search boxes have one-click clearing, window positions and sizes are remembered, and the interface supports Auto, Light, Dark and RS-Systems themes. Batch actions are grouped into clean Revit undo records; a failure on one row is isolated so it does not cancel the whole batch, and warnings/results are written to the log. RS Param Manager is accessed from the RS-Systems ribbon and is built for Revit 2021–2027.

8. Details that make repeated work faster and safer
