RSG · Deep dive

What RSG is and why you need it.

Revit Server Guard is a software gateway that's installed on the same host as Autodesk Revit Server. It intercepts TCP and HTTP traffic to the RS ports, reads its metadata (which user, which project, which section, which action), and applies access rules that don't exist in Revit Server itself.

Overview — access assignment summary tableThe administrator’s start screen. It shows who has which role in each project and section, with search, grouping, bulk actions, and refresh. Projects — Revit Server project catalogueThe link between real Revit Server projects and RSG administration: server path, country, folder tree, section bindings, and user assignments. Roles — permission matrix by sectionThe main place for configuring authorization: which role can write to which section or discipline. Audit log — event stream and exportA full history of changes: who did what, where, and when, with filters by project, user, action type, and PDF/XLSX export.

01 — Overview

What RSG is and why you need it.

Revit Server Guard is a software gateway that's installed on the same host as Autodesk Revit Server. It intercepts TCP and HTTP traffic to the RS ports, reads its metadata (which user, which project, which section, which action), and applies access rules that don't exist in Revit Server itself.

Out of the box, Revit Server does not provide transparent access rights by user, project, section and action. If a participant has access to the server, RS has no built-in model that reliably limits that participant only to their area of responsibility. In a small team this may be acceptable. In projects with many companies, temporary participants and different responsibility levels, training and internal regulations are not enough: RSG removes this technical limitation.

Who needs this

• Design firms running multiple clients in parallel who don't want client A's team to see what's being done for client B.
• BIM coordinators who need to separate rights at the section level — structural engineers see and edit structures, MEP engineers see their own discipline, and so on.
• Contractors and freelancers who get temporary access to a specific project and a specific section, and need to be locked out with one click when their contract ends.
• Teams with regulatory requirements (government contracts, restricted-access facilities) where a who-opened-what-and-when log is mandatory.

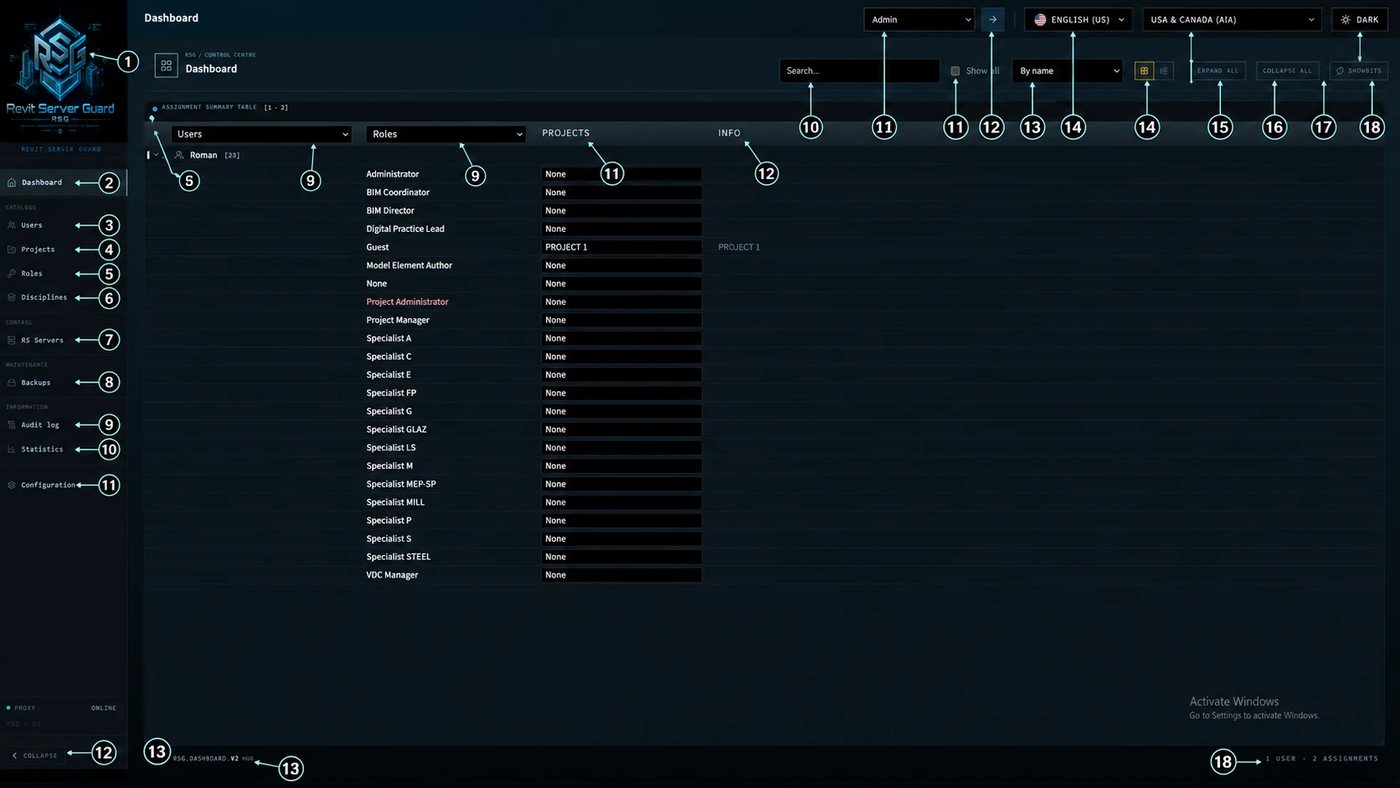

01 Overview — access assignment summary tableThe administrator’s start screen. It shows who has which role in each project and section, with search, grouping, bulk actions, and refresh.

02 — Architecture

Four components, one Windows host.

RSG is one monolith, but four separate modules installed together. This is intentional: each component is responsible for its own scope and can be restarted independently when needed.

What each component does

1. RSG.Proxy — a TCP/HTTP proxy that listens on port 8086 instead of the default RS port. Unwraps Revit Server SOAP envelopes, extracts request metadata, asks RSG.Server «is this allowed?» — and either passes it through or returns 403 to the client.
2. RSG.Server — a Windows service on.NET 8 that holds access rules in local SQLite/SQL Server, runs the audit log, validates the license, and talks to the License API. The «brain» of the solution.
3. RSG.AdminPanel — a React SPA available on localhost:5080 (or inside the corporate network over HTTPS). The admin uses it to create users, projects, rules, and view the audit log.
4. RSG.LicenseTool — a separate CLI tool for offline activation. Used only in air-gapped networks; not needed in a normal online installation.

Important

Revit Server stays exactly as it was. RSG doesn't modify its binaries, doesn't rewrite the database, doesn't replace configs. It sits alongside and operates through standard network interfaces. If you turn RSG off, Revit Server keeps working exactly as it did before RSG was installed.

02 RS gateways — proxy and protection managementThe RSG protection layer for network access to Revit Server: hosts, proxy paths, protection status, and service start/stop.

03 — Access control

Three levels of rights: project, section, action.

RSG grants rights not «all or nothing» but granularly. You don't hand out «server access» — you hand out «access to project X, section Architecture, read-only». Under the hood this happens at the SOAP-request level of Revit Server, where RSG inspects the operation type and makes a decision.

Users and AD groups are bound to roles. A role is a set of permissions for a specific project and its sections. One user can have different roles in different projects: «coordinator» in one, «observer» in another, «no access» in a third.

Levels

• Project. The base unit is the root project folder on the server. The user sees the project in the list but cannot open it.
• Model section. Architecture, structures, engineering, coordination — each section can have its own rights. A subcontractor engineer opens only their section; the rest is not even pulled into the Revit client.
• Action. read, edit. View without editing is a separate right from editing without publishing.

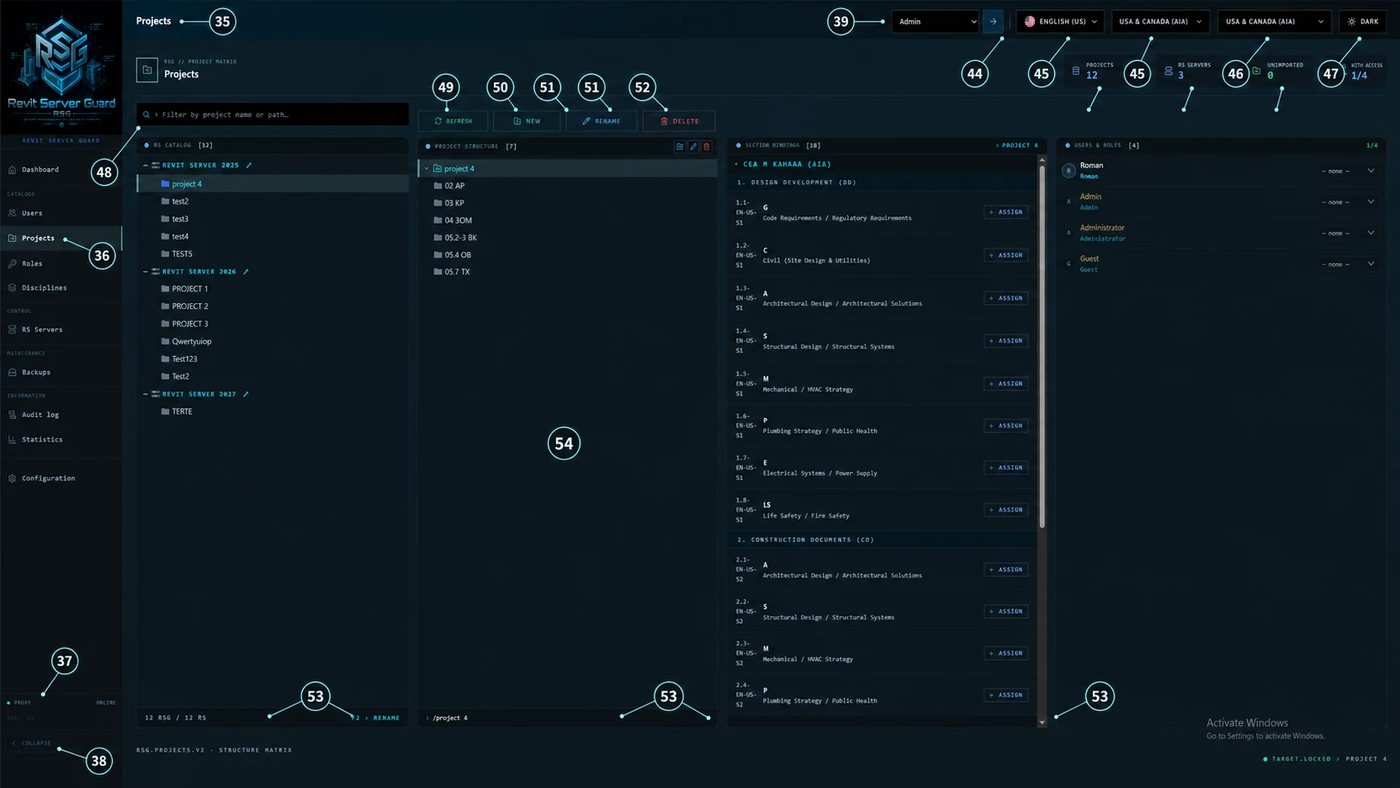

03 Projects — Revit Server project catalogueThe link between real Revit Server projects and RSG administration: server path, country, folder tree, section bindings, and user assignments.

Roles and groups

Below — how it looks in the admin panel. The matrix: projects in rows, roles in columns, permission state in cells.

Legend: full access · read only · mixed by section · none

Example rule configuration

Every rule is expressed as a JSON document that can be edited through the UI or imported in batch from CSV/JSON when migrating from in-house tools.

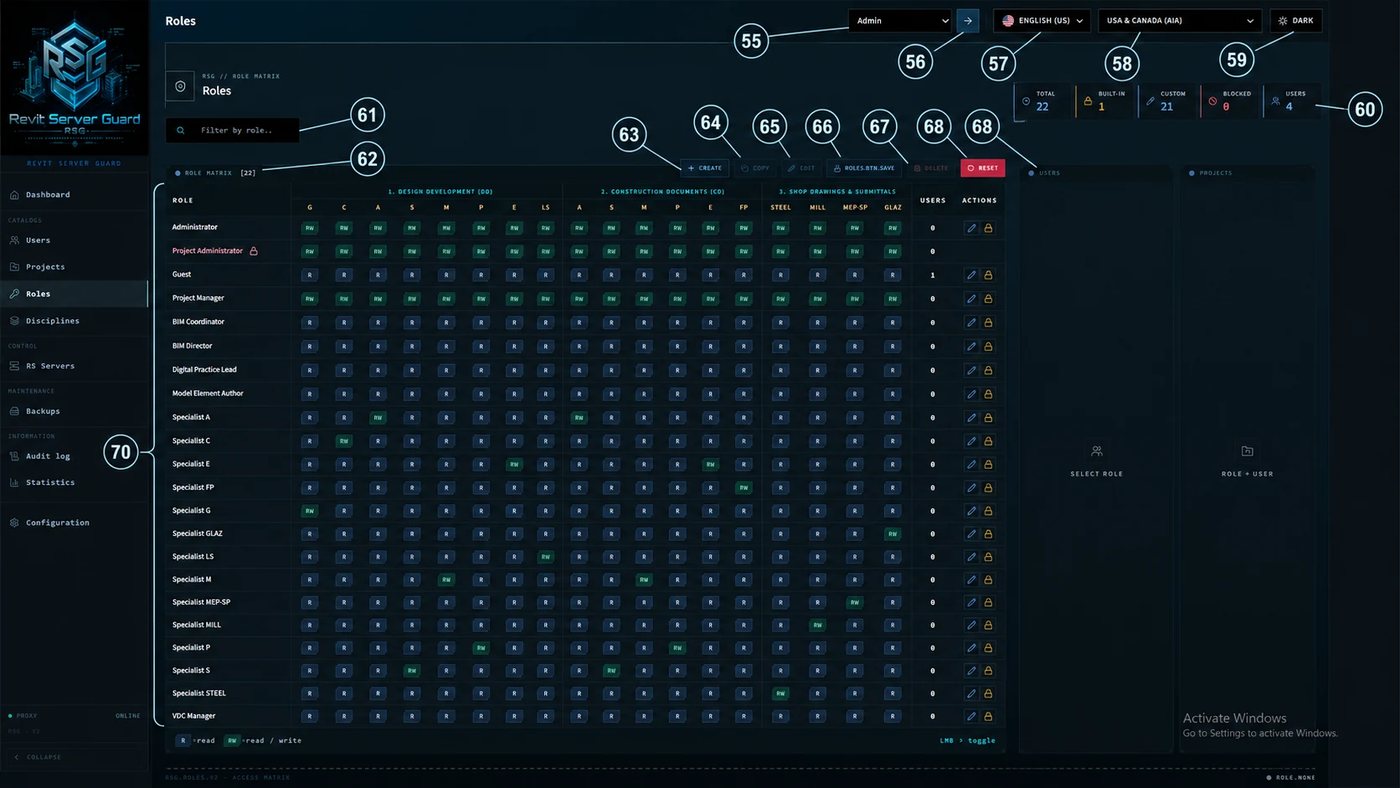

04 Roles — permission matrix by sectionThe main place for configuring authorization: which role can write to which section or discipline.

04 — Admin panel

A web admin panel instead of CLI and registry.

All management — through a React SPA available locally on the RSG host. No regedit, no gpedit, no manual XML edits. The admin opens a page in the browser and sees the dashboard, license, audit, and permissions matrix. If remote access is needed, it's served behind a reverse proxy with TLS.

The home page is the dashboard. Four numbers across the top for the day, an event feed below, and a license panel.

05 Users — identity register and assignmentsA controlled list of users, their status, projects, roles, and actions for creating, editing, importing, and exporting accounts.

06 Sections — discipline catalogue and bindingsThe discipline directory such as AR, KR, MEP, and the bindings between sections and real Revit Server project folders.

05 — Audit

Every action — in the log.

Audit isn't an optional feature, it's part of the main flow. Every request that passes through RSG.Proxy leaves a record: who, what, against which project/section, which action, what result, from which IP, from which Revit version. Logs are stored locally and exported to CSV/JSON/SIEM.

The admin panel has a table with filters on every field. Clicking a row opens the full event JSON.

What gets recorded

• Identity: AD login, IP, Revit client version, user's machine name.
• Target: project ID, file name, section/workset, element ID (where applicable).
• Action: open, sync_to_central, reload_latest, create_local, publish, delete_local, borrow_workset, etc.
• Result: allow / deny / warn (warn — not blocked, but flagged for review).
• Context: which rule made the decision, timestamp with TZ, operation duration.

Retention

By default the log is kept for 18 months. This is configurable. Logs can be streamed to a SIEM system over webhook (JSON payload), written to your company's SQL Server, or exported in batch via CLI.

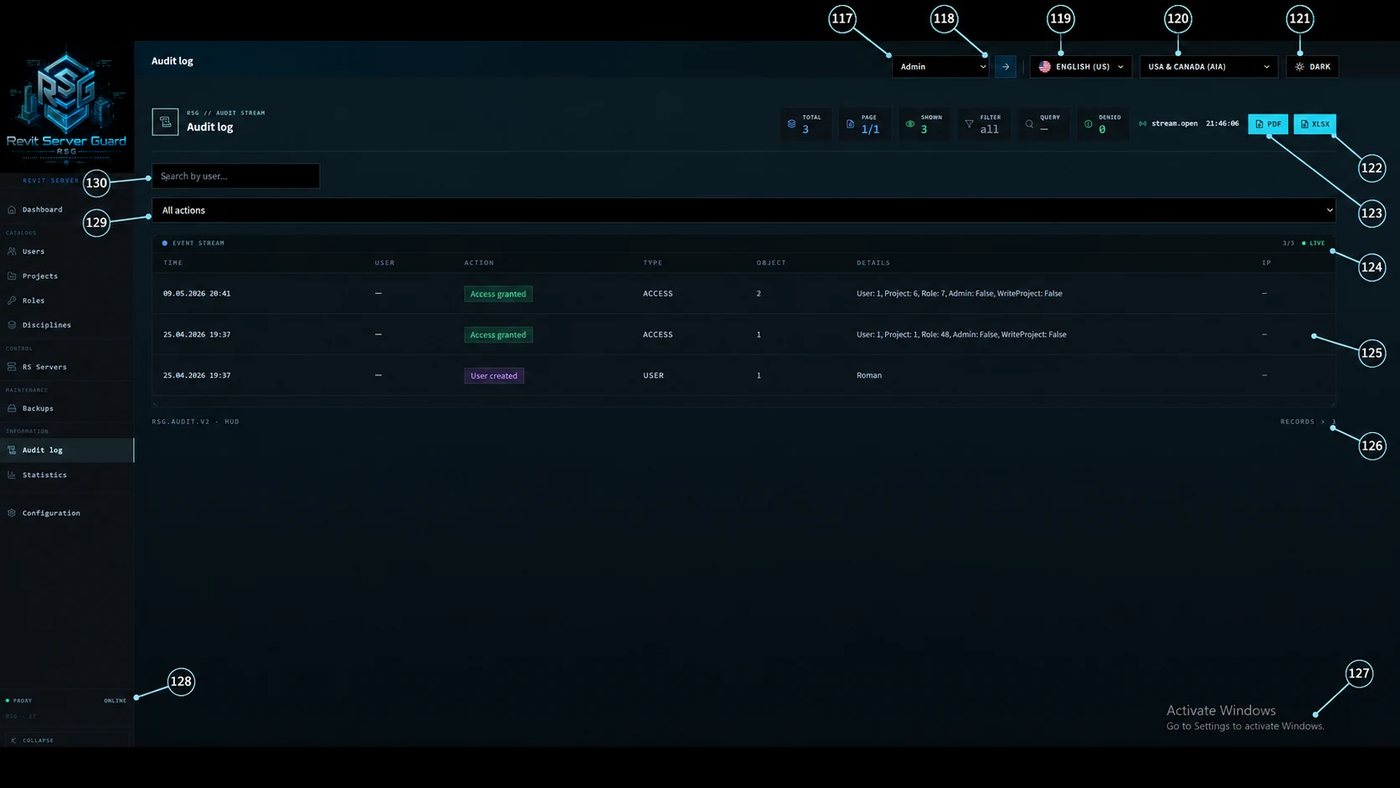

07 Audit log — event stream and exportA full history of changes: who did what, where, and when, with filters by project, user, action type, and PDF/XLSX export.

08 Backups — project backup gridCentralized backup scheduling for Revit Server projects with storage path, schedule, last backup date, and success/error status.

06 — Licensing

A signed license bound to the machine.

An RSG license is a signed envelope (LicenseEnvelope) containing a payload with rights and a signature. The signature is produced on our side with an ECDSA P-256 private key and verified on the client side with a public key embedded in the RSG binary.

That means: forging a license or running «your own License API» at the same URL is impossible without the private key. A keygen physically can't exist — you'd have to either break ECDSA P-256 (theoretically unrealistic) or steal the private key from our HSM.

Machine fingerprint

The license is bound to a machine through a fingerprint — SHA-256 of a deterministic string assembled from the machine name and MAC addresses of network interfaces.

Network interfaces are sorted — that matters. If the system has multiple MACs, the OS may enumerate them in a different order, and sorting removes that instability. The machine name is uppercased for the same reason.

Online and offline activation

When the host has outbound HTTPS to our domain, activation is one click in the admin panel. RSG.Server sends a JSON with the fingerprint and metadata, the License API returns a signed envelope, which is applied immediately.

When there's no network (closed perimeter, government segment, isolated test range), activation goes through files:

1. In the admin panel → «Generate license request» → save request.rsgreq to a USB drive.
2. In the personal cabinet on the website → «Activate offline» → upload .rsgreq → receive license.rsglic.
3. Upload the .rsglic back into the admin panel. Done.

What happens after expiration

After the trial or a term license expires, RSG switches to bypass mode — protection turns off, Revit Server works as it did before RSG was installed. This is intentional: we don't want a customer running into a broken production at 23:50 on a Friday. When the license is restored, RSG returns to full automatically.

09 Configuration — system settings, license, and appearanceThe configuration screen for license, branding, database, ports, API address, server path, theme, languages, logo, and administrator password.

07 — Installation

In one evening: from installer to first role.

RSG installs via a Windows installer (MSI or EXE). No docker, no kubernetes, no external dependencies except the.NET 8 LTS Runtime — which is either already installed on Windows Server 2022/2025 or pulled by the installer.

What you need before installing

• Windows Server 2019 / 2022 / 2025 on the same host as Revit Server.
• An account with admin rights on that host.
• Read-only access to the RS database (RSG doesn't write to it, only reads project metadata).
• One free TCP port (8086 by default) — RSG.Proxy will bind to it.
• ~250 MB of disk for the installation, ~5 GB for the audit log over six months.

Steps

1. Download RSG-Setup-1.0.0.exe from your personal cabinet.
2. Run the installer as administrator. Specify the proxy port and the path to the RS database.
3. Open http://localhost:5080 — the first-run wizard will ask you to create an admin-panel superuser.
4. Import users from AD (one click) or add them manually.
5. Create a first access rule on a test project.
6. Redirect Revit clients to the new proxy port (via DNS or Group Policy).

Configuration

Most settings live in appsettings.json of RSG.Server. Most admins never touch it — everything is configurable through the UI — but sometimes it's needed.

08 — Compatibility

Works with what you already have.

RSG was designed for existing installations, not greenfield ones. No requirement for a new Windows version, a new Revit Server version, or a clean infrastructure. It works with what's there.

Performance

The proxy adds ~3–8 ms of latency per request under typical load (measured on a Xeon E-2336, Windows Server 2022, 100 concurrent Revit clients). It's imperceptible for the user — Revit isn't known for being lightning-fast over the network anyway.

• RAM: 200–400 MB resident with 100 active users.
• CPU: <5% of one core under peak load.
• Disk I/O: ~15 MB/hour of audit log with 100 users.
• Network: close to zero overhead — RSG doesn't buffer, it streams the proxy traffic through.

10 Statistics — activity analytics and reportsCharts and summaries for activity: projects, users, changes, exports, and separate project model activity export.

09 — Security

What RSG protects — and what it doesn't do.

Honestly: RSG isn't a silver bullet. It addresses one specific class of problems — authorization for access to Revit Server. Below — what's inside its threat model, and what's outside.

In RSG's threat model

• An insider with legitimate AD access trying to read others' projects. Closed: project + section + action check on every request.
• A contractor whose contract ended but whose AD account hasn't been disabled yet. Closed: rules with validUntil and denyOnExpired: true.
• A leak via a fake site or a fake License API. Closed: the license is signed with ECDSA P-256, the key is embedded in the client. Substituting the site without the private key is impossible.
• Moving a license to someone else's machine. Closed: machine fingerprint in the payload, validated on every service start.

Outside RSG's threat model

• A compromised AD server. If an attacker gains DA rights — they get access to RSG.AdminPanel too. That's an AD security problem, not RSG's.
• Physical access to the RSG host. With local admin access the service can be stopped. Infrastructure-level protection — bitlocker, physical control.
• Screenshots and photographs of the screen. If a user has legitimate access to a project, they can see it and photograph it. RSG isn't a DLP solution.
• Leaks via local Revit files. When a Revit client downloads a local copy of a project, it physically lives on the user's drive. That requires disk encryption and DLP.

Cryptography

• License signing: ECDSA P-256 + SHA-256, format IEEE P1363, length 64 bytes.
• Communication with the License API: TLS 1.2+, certificate validation.
• Internal AdminPanel ↔ RSG.Server traffic: HTTPS with a self-signed certificate by default (replaceable with a corporate one).
• Storage of the signing private key on our side: managed key vault with rotation policy.

10 — FAQ

Frequently asked — about RSG specifically.

What happens if RSG.Server crashes overnight?

In that case RSG.Proxy switches to fail_open or fail_closed mode — configurable. By default, fail_open: when the brain is unreachable, the proxy passes traffic to Revit Server without checks (as if RSG weren't there). That gives safe behavior on RSG failure: the business keeps working. If your company's requirements are the opposite — better to block everything than to risk a leak — you set fail_closed.

What if a network card's MAC changes?

The fingerprint changes, and the license will be rejected. Two solutions: either set quantity = 2 at purchase time (then the license is valid for two fingerprints and you can use one more activation), or request a re-issue from your personal cabinet — it's free and instant.

Can RSG run in HA configuration (two nodes)?

Right now (v2.4.x) — no, single-instance only. HA configuration is on the roadmap for v3.0. As a workaround, teams typically keep a «cold» second node with the same config and switch DNS on failure.

Does RSG read .rvt files?

No. RSG operates at the level of Revit Server's network protocol — it sees SOAP requests, project metadata, section names. It doesn't parse or store model contents. For content-level control (DLP based on what's inside models) you need separate solutions.

How many licenses do I need for two Revit Servers?

Two — each license is bound to one fingerprint, and the fingerprints of two hosts are different. Discounts for multi-server configurations are quoted individually, write to info@.

Can I migrate from an in-house solution?

If you have any matrix of «user × project × right» in Excel/CSV/SQL — importing it into RSG is supported via the rsg-import CLI. If your in-house solution did something more complex (e.g., rights based on geometric properties inside the model) — RSG doesn't cover that, you'll have to leave that part as it was.

Ready to try?

Install RSG next to Revit Server today.3 months of trial, no card.

Download the installer from your personal cabinet, put it on the same host as RS, give it half an hour. By evening you'll see what RSG does that Revit Server doesn't do out of the box.
